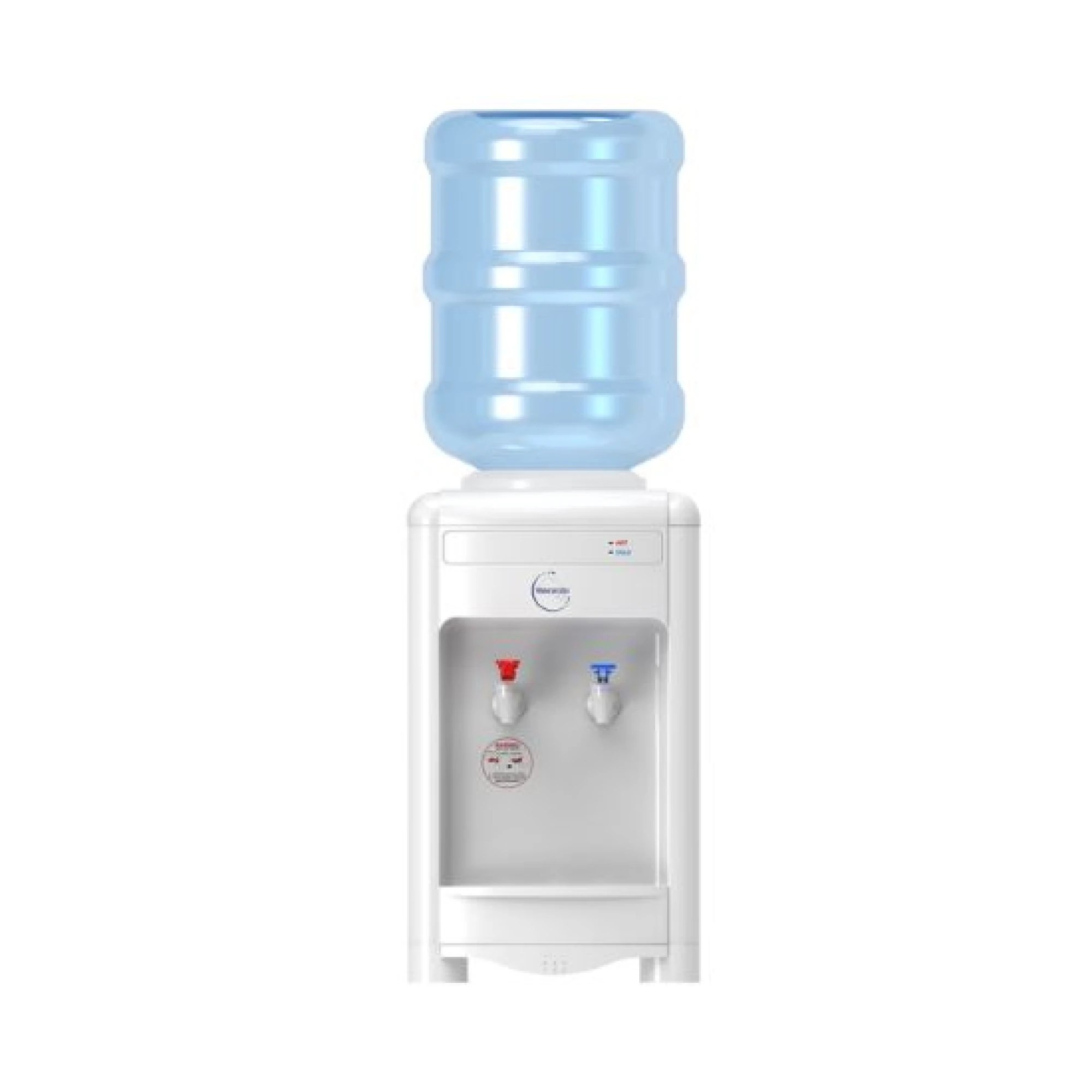

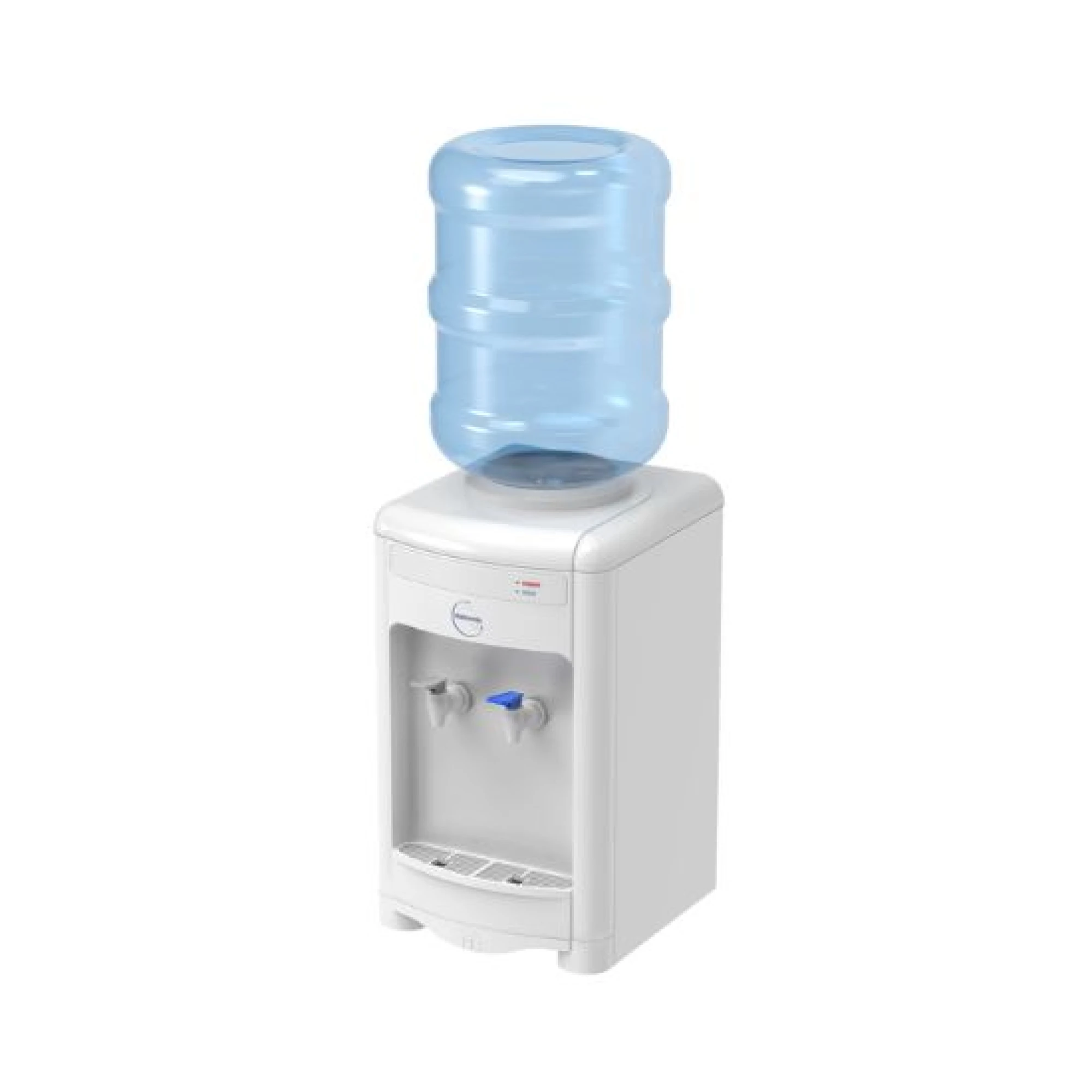

Bottled Type-Bench Top

GENERAL FEATURES

• COLD TANK: 4 litre hygienic 304 stainless steel, for superior chilling. The highly polished surface is easy to clean and maintain
• HOT TANK: 1.8 litre type 304 stainless steel tank with 500 watt sheathed heater to ensure temperature control. The on/off switch is easily accessible at the back of the unit.
• CABINET: Gloss Cloud White in colour. The top and front panels are moulded UV treated ABS. The side panels are made from zinc coated steel sheets covered in polymer polyester resin.
• TAPS: NSF Approved durable polypropylene self-closing design. Fully recessed, lever type for fast flow. Hot safety tap comes as standard on hot/cold model. Optional hygienic push taps also available.

SPECIFICATIONS

• REFRIGERATION: Gas R134A. The refrigerant flow is controlled by a capillary tube which has no moving parts. The compressor is hermetically sealed with an automatic overload protector. Lubricant is not needed.
• ELECTRICAL: Certificate number 160793. 220v 50hz single phase. A 1.5 metre power cord is supplied. Full load current is 1.2 amps.
• CONDENSER: Quietly operating, air cooled static type with no moving parts.

PERFORMANCE

Tap 1 Approx. 4-8°C Tap 2 Room Temperature Hot tap Approx. 84-89°C

SHIPPING WEIGHTS & DIMENSIONS

Model SB5C 16kg  & SB5CH- 18kg 330mm W  330mm D  600mm H

WARRANTY

The Waterworks™ SB5 Series water coolers are covered by our 12 month Comprehensive Warranty (copy available on request). The warranty provides comprehensive parts and labour coverage for
